sqlite database problem about rawQuery()---need help

Problems with WiFi, SQLite ,Bluetooth, WiMax, Proxies, etc...
Post a reply

sqlite database problem about rawQuery()---need help

Postby Bruce.lntu » Fri Dec 12, 2008 2:43 am

Hi everyone,

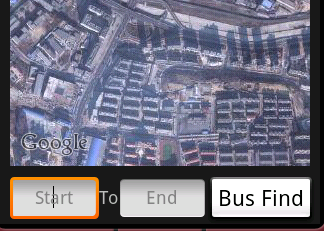

My problem is how to find the related records from two or three talbes created in one database when type the EditText"start" and "end" then click "Busfind". :?:

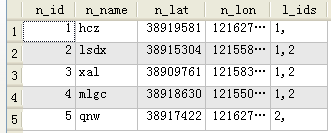

When I create a sqlite database with 3 tables with another sqlite tool,
later,, I push it into the emulator,and it works well, I mean the data can be read and written by some Cursors like
Code: Select all
Cursor cst=myDB.rawQuery("SELECT node.n_name,ln.l_id" +
                                      " FROM " + MY_DATABASE_TABLE4 +", " + MY_DATABASE_TABLE3 +
                                      " WHERE node.n_name = " +
                                      "'" + busStart +"'", null);

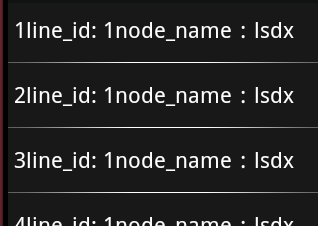

this show me a list lines which contains the entry"start",look at the image below;
Image Image

or which Cursor shall I use?
Code: Select all
//               Cursor ced=myDB.query(table, columns, selection, selectionArgs, groupBy, having, orderBy);
//               Cursor ced=myDB.query(table, columns, selection, selectionArgs, groupBy, having, orderBy, limit);
//               Cursor ced=myDB.query(distinct, table, columns, selection, selectionArgs, groupBy, having, orderBy, limit);
//               Cursor ced=myDB.queryWithFactory(cursorFactory, distinct, table, columns, selection, selectionArgs, groupBy, having, orderBy, limit)
//               Cursor ced=myDB.rawQueryWithFactory(cursorFactory, sql, selectionArgs, editTable)


please Someone show me the way to this problem, Thank you very much.

the code is,
Syntax: [ Download ] [ Hide ]
Using java Syntax Highlighting
  1. package child.bf;
  2.
  3.
  4.
  5. import java.util.ArrayList;
  6.
  7. import android.app.ListActivity;
  8.
  9. import android.content.Intent;
  10.
  11. import android.database.Cursor;
  12.
  13. import android.database.sqlite.SQLiteDatabase;
  14.
  15. import android.os.Bundle;
  16.
  17. import android.text.GetChars;
  18.
  19. import android.widget.ArrayAdapter;
  20.
  21. import android.widget.EditText;
  22.
  23.
  24.
  25. public class DataBaseWork extends ListActivity {
  26.
  27.
  28.
  29.      private final String MY_DATABASE_NAME = "bus.db";
  30.
  31.
  32.
  33.      private final String MY_DATABASE_TABLE2 = "line";
  34.
  35.      private final String MY_DATABASE_TABLE3 = "node";
  36.
  37.      private final String MY_DATABASE_TABLE4 = "ln";
  38.
  39.
  40.
  41.      public static final String BUS_START = "startInput";
  42.
  43.          public static final String BUS_END = "endInput";
  44.
  45.
  46.
  47.      /** Called when the activity is first created. */
  48.
  49.      @Override
  50.
  51.      public void onCreate(Bundle icicle) {
  52.
  53.           super.onCreate(icicle);
  54.
  55.
  56.
  57.           Intent intent = getIntent();
  58.
  59.           String busStart = intent.getStringExtra(DataBaseWork.BUS_START);
  60.
  61.           String busEnd = intent.getStringExtra(DataBaseWork.BUS_START);
  62.
  63.
  64.
  65. //          EditText et = new EditText(this);
  66.
  67. //          et.setSelection(et.getText().length());
  68.
  69.           /* Will hold the 'Output' we want to display at the end. */
  70.
  71.           ArrayList<String> results = new ArrayList<String>();
  72.
  73.
  74.
  75.           SQLiteDatabase myDB = null;
  76.
  77.           try {
  78.
  79.                /* Create the Database (no Errors if it already exists) */
  80.
  81.                   myDB = this.openOrCreateDatabase(MY_DATABASE_NAME, MODE_PRIVATE, null);
  82.
  83.
  84.
  85.                /* Create a Table in the Database. */
  86.
  87. //table line
  88.
  89.                myDB.execSQL("CREATE TABLE IF NOT EXISTS "
  90.
  91.                        + MY_DATABASE_TABLE2
  92.
  93.                        + " (l_id INT(3), l_name VARCHAR,"
  94.
  95.                        + " n_ids VARCHAR);");
  96.
  97. //talbe line_node as ln
  98.
  99.                myDB.execSQL("CREATE TABLE IF NOT EXISTS "
  100.
  101.                        + MY_DATABASE_TABLE4
  102.
  103.                        + " (l_id INT(3), "
  104.
  105.                        + " n_id INT(3));");
  106.
  107. //talbe node
  108.
  109.                myDB.execSQL("CREATE TABLE IF NOT EXISTS "
  110.
  111.                        + MY_DATABASE_TABLE3
  112.
  113.                        + " (n_id INT(3),n_name VARCHAR, "
  114.
  115.                        + " n_lat INT(4),n_lon INT(4),"
  116.
  117.                        + " l_ids VARCHAR );");
  118.
  119.                /* Query for some results with Selection and Projection. */
  120.
  121.                Cursor cst=myDB.rawQuery("SELECT node.n_name,ln.l_id" +
  122.
  123.                                             " FROM " + MY_DATABASE_TABLE4 +", " + MY_DATABASE_TABLE3 +
  124.
  125.                                             " WHERE node.n_name = " +
  126.
  127.                                             "'" + busStart +"'", null);
  128.
  129.                /* Get the indices of the Columns we will need */
  130.
  131.
  132.
  133.                int l_idColume=cst.getColumnIndexOrThrow("l_id");
  134.
  135.                int n_nameColume=cst.getColumnIndexOrThrow("n_name");
  136.
  137.
  138.
  139.
  140.
  141.                /* Check if our result was valid. */
  142.
  143.
  144.
  145.              cst.moveToFirst();
  146.
  147.              if (cst != null) {
  148.
  149.                   /* Check if at least one Result was returned. */
  150.
  151.                   if (cst.isFirst()) {
  152.
  153.                        int i = 0;
  154.
  155.                        /* Loop through all Results */
  156.
  157.                        do {
  158.
  159.                             i++;
  160.
  161.                             /* Retrieve the values of the Entry
  162.
  163.                              * the Cursor is pointing to. */
  164.
  165.                             String nname = cst.getString(n_nameColume);
  166.
  167.                             int lid=cst.getInt(l_idColume);
  168.
  169. //                            int nid=cst.getInt(n_idColume);
  170.
  171.                             /* We can also receive the Name
  172.
  173.                              * of a Column by its Index.
  174.
  175.                              * Makes no sense, as we already
  176.
  177.                              * know the Name, but just to show we can  */
  178.
  179. //                           String ageColumName = c.getColumnName(ageColumn);
  180.
  181.
  182.
  183.                             /* Add current Entry to results. */
  184.
  185.                             results.add("" + i + "(line_id: " + lid + "node_name;" +nname);
  186.
  187.                        } while(cst.moveToNext());
  188.
  189.
  190.
  191.                   }
  192.
  193.              }
  194.
  195.
  196.
  197.           } finally {
  198.
  199.                if (myDB != null)
  200.
  201.                     myDB.close();
  202.
  203.           }
  204.
  205.
  206.
  207.           this.setListAdapter(new ArrayAdapter<String>(this,
  208.
  209.                     android.R.layout.simple_list_item_1, results));
  210.
  211.      }
  212.
  213.
  214.
  215. }
Parsed in 0.053 seconds, using GeSHi 1.0.8.4
